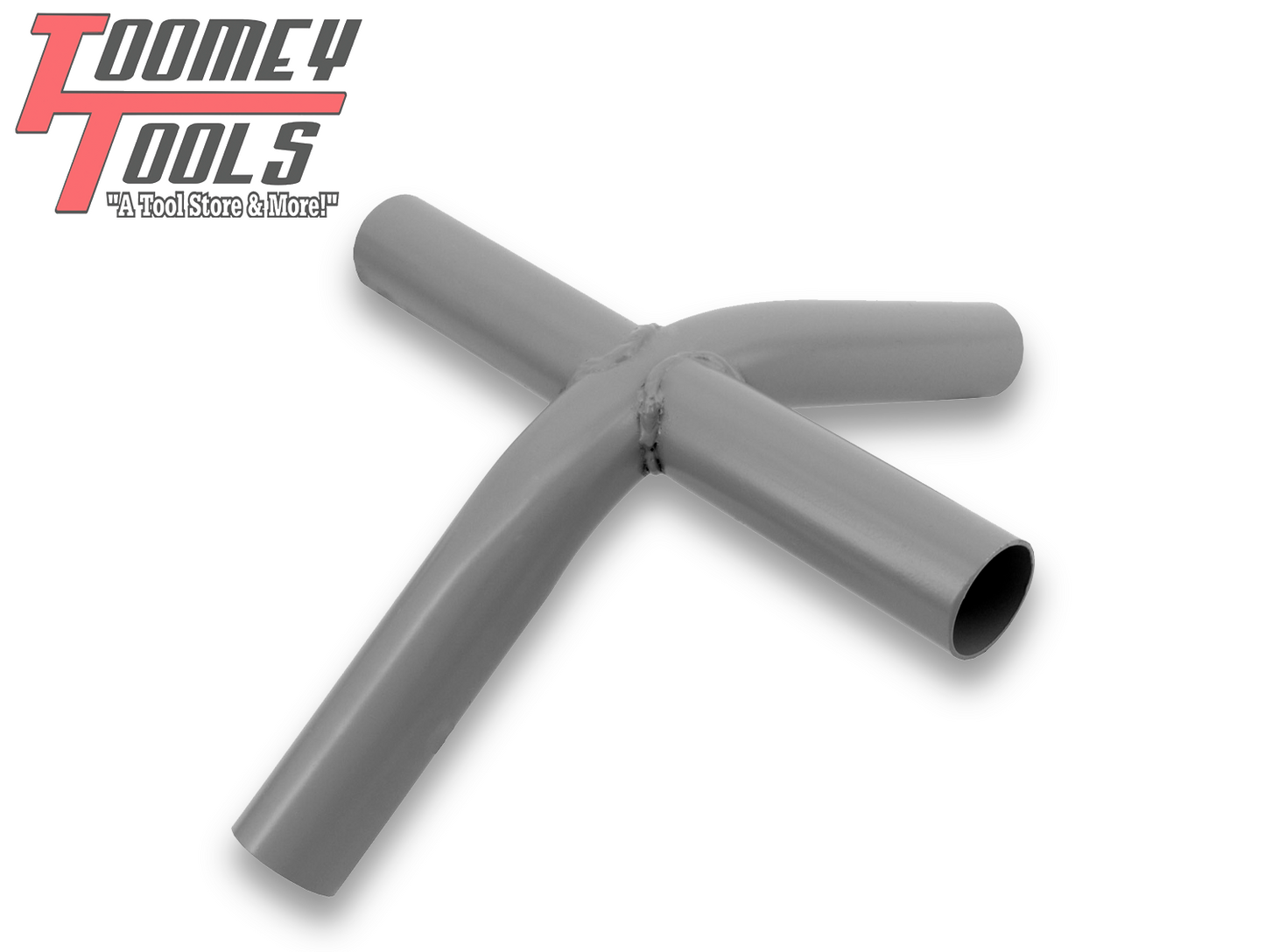

1-3/8" High Peak 4-Way Canopy Fitting - Gray Powder Coated

The 1-3/8" 4-Way Canopy Fitting - Gray Powder Coated is designed to be used to form the middle sections of a high peak canopy frame. The angle formed by this fitting is 120 degrees (rise angle of 30 degrees). At this angle, the canopy rafters will rise at a rate of 6.9" / linear foot. Our gray canopy fittings are crafted from 16 gauge powder coated steel with fully welded corners and connections.

Application(s)

Forms the middle sections of a high peak canopy frame.

High Peak Angle

The angle formed by this fitting is 120 degrees (rise angle of 30 degrees)

• Extremely durable gray powder coated finish to resist rust and corrosion

• Designed to be used to form the middle sections of a canopy frame

• Designed for use with 1-5/16" outer diameter pipe

• Outer Diameter (OD): 1-1/2"

• Inner Diameter (ID): 1-3/8"

• Leg Length: 5"

• Peak Angle: 120º

• Thickness: 16 gauge
